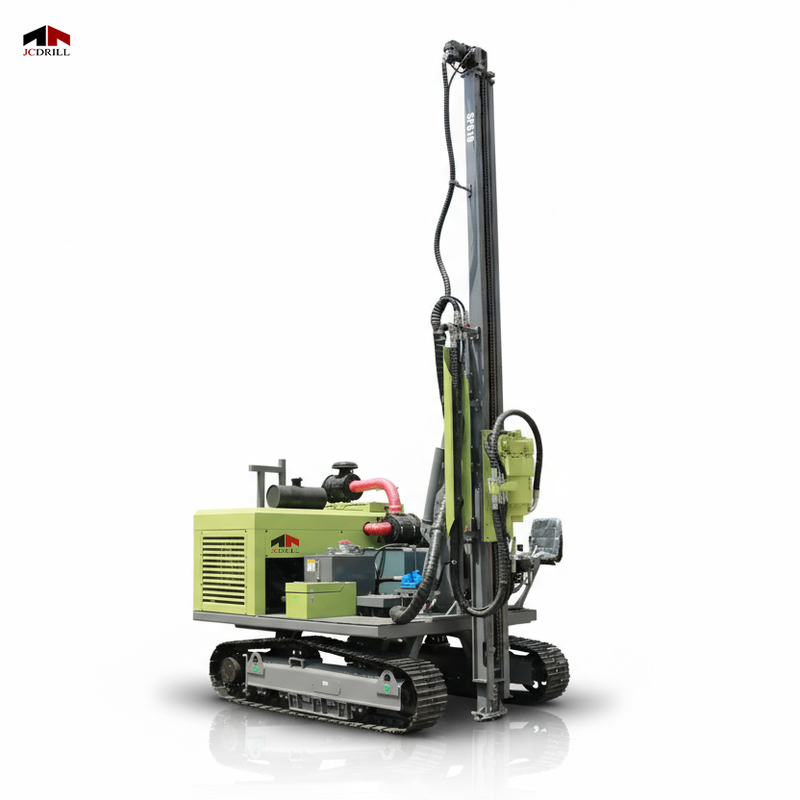

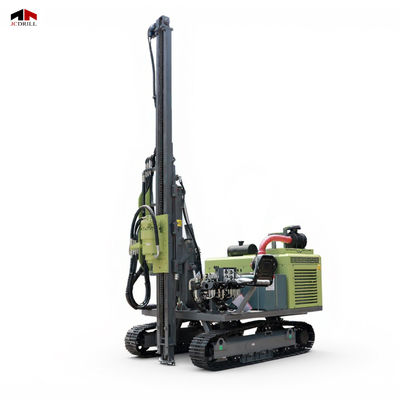

Hydraulic SP619 Solar Piling DTH Drilling Rig for Foundation and Construction Projects

Name: Hydraulic SP619 Solar Piling DTH Drilling Rig for Foundation and Construction Projects
Brand: Beijing Jincheng Mining Technology Co., Ltd.
SKU: mit einer Breite von nicht mehr als 15 mm
Price: 17,506.00 USD
Availability: InStock

Markenbezeichnung:	JCDRILL
Modellnummer:	mit einer Breite von nicht mehr als 15 mm
MOQ:	1
Preis:	Verhandelbar
Zahlungsbedingungen:	L/C, D/A, D/P, T/T, Western Union

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

Peking

Zertifizierung:

Hervorheben:

Hydraulic solar piling rig

DTH drilling rig for construction

SP619 foundation drilling machine

Beschreibung des Produkts

Hydraulic SP619 Solar Piling DTH Drilling Rig for Foundation and Construction Projects

Drilling Diameter: 90 - 219 mm
Drilling Depth: 0 - 70 m
Drilling Technique: Air-powered method

Application

The SP619 down-the-hole (DTH) drilling rig is a compact yet highly efficient unit engineered for versatility across multiple working environments. Designed especially for shallow, large-diameter holes, it performs reliably in geothermal exploration, foundation piling, small-scale quarrying, and utility pipeline projects. Supporting bore sizes from φ90 to φ400 mm, the SP619 maintains stability and speed in both soft and mixed ground conditions.

Key Features

Powerful & Efficient Drive System:

Powered by a Yuchai or Cummins engine (optional), the SP619 ensures consistent output
250 L sealed fuel tank offers long operating hours and reduces downtime for refueling

Advanced Rotary & Feeding System:

Rotary head provides up to 13,000 N*m torque with a variable speed range of 0-80 rpm
Hydraulic feed stroke of 5,000 mm delivers a thrust of 18 kN, ensuring fast and reliable drilling penetration

Compact Mobility for All Terrains:

Weighing only 6 tons with crawler drive system offering travel speed of 0-2 km/h
Can climb slopes up to 30° with 700 mm ground clearance for excellent mobility on uneven terrain

Broad Equipment Compatibility:

Supports both DTH hammer and auger drilling
Required air compressor range (15-50 m³/min, 1.0-2.4 MPa) ensures flexibility with various pneumatic systems

Operator-Focused Control Layout:

Rear-mounted, centralized control panel enhances visibility and simplifies operation
Promotes safe and efficient workflow in confined work areas

Specifications

Category	Item	Unit	Specification
General	Hole Depth	m	30
	Hole Diameter	mm	φ90 - 400
	Rod Diameter	mm	φ76 / φ98
	Rod Length	mm	3000
Rotation	Max Torque	N*m	13000
	Speed Range	rpm	0 - 80
	Pull-back Force	kN	20
Feed System	Type		Motor-driven
	Stroke	mm	5000
	Extension	mm	900
	Feed Force	kN	18
Engine	Brand		Yuchai / Cummins (optional)
	Model		YCB61502-Cov / 4BTA3.9-G125
	Rated Power	Hp	150 / 185
	Fuel Capacity	L	250
Compressor Requirement	Working Pressure	MPa	1.0 - 2.4
Compressor Requirement	Air Flow	m³/min	15 - 50
Dimensions	Weight	kg	6000
Dimensions	Transport Size (L×W×H)	mm	6300 × 2200 × 2850
Mobility	Travel Speed	km/h	0 - 2
	Climb Gradient	°	30
	Ground Clearance	mm	700
