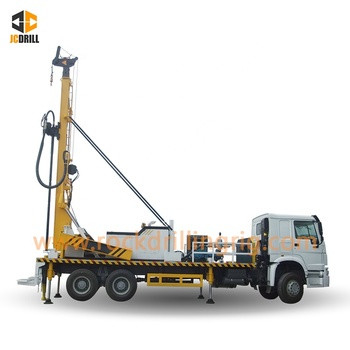

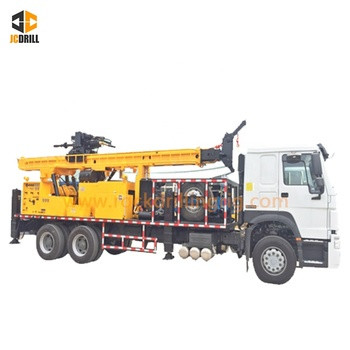

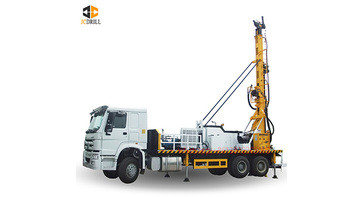

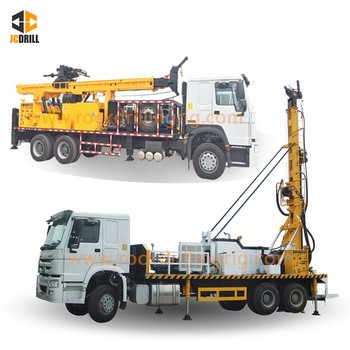

Borehole CSD400 Portable Hydraulic Water Well Drilling Rig Truck Mounted

Borehole CSD400 Portable Hydraulic Water Well Drilling Rig Truck Mounted
Borehole CSD400 Portable Hydraulic Water Well Drilling Rig Truck Mounted Borehole CSD400 Portable Hydraulic Water Well Drilling Rig Truck Mounted Borehole CSD400 Portable Hydraulic Water Well Drilling Rig Truck Mounted Borehole CSD400 Portable Hydraulic Water Well Drilling Rig Truck Mounted

Großes Bild :  Borehole CSD400 Portable Hydraulic Water Well Drilling Rig Truck Mounted

Produktdetails:
Herkunftsort: Hebei, China
Markenname: JCDRILL
Zertifizierung: ISO,CE
Zahlung und Versand AGB:
Min Bestellmenge: 1Set
Preis: Negotation
Lieferzeit: 15 Zu verhandelt werden
Zahlungsbedingungen: T/T, L/C, D/P, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit: 2000 Satz/Sätze pro Jahr
Kontakt

Borehole CSD400 Portable Hydraulic Water Well Drilling Rig Truck Mounted

Beschreibung
Modellnummer: CSD400 Maß: 11000*2480*3050mm
Drilings-Durchmesser: 450mm Saattiefe: MAX.400
Gewicht: 22000kg Energie-Art: Disel
Markieren:

400m tiefer Anhänger brachte Ölplattform

,

Wasser-Brunnenbohrungsanlage des Bohrlochs tragbare hydraulische

,

400m tragbare hydraulische Wasser-Brunnenbohrungsanlage an


Product Overview



CSD400 Truck Mounted Water Well Drilling Rig
CSD400 Multi-functional truck mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.
CSD400 truck mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.
CSD400 deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.
Borehole CSD400 Portable Hydraulic Water Well Drilling Rig Truck Mounted 0
Borehole CSD400 Portable Hydraulic Water Well Drilling Rig Truck Mounted 1



Product Paramenters
No.
Item


1
Geology Drilled

All Kinds
2
Drilling Type

DTH & Mud Rotary
3
Drill System and Operation

Hydraulic
4
Hole Diameter
mm
140-350
5
Hole Depth
m
400
6
Rotation Torque
Nm
9600
7
Rotation Speed
rpm
60-120
8
Drill Pipe Diameter
mm
89/114
9
Drill Pipe Length
mm
4000/4500
10
Axial Pressure
KN
85
Winch
12
Lifting Force of Main Winch(Optional)
T
4
13
Lifting Force of Hoist
T
1.5
14
Length of Steel Wire Rope(Tool Winch)
m
100
15
Lifting Height of Tool Winch
m
8
Engine
16
Diesel Engine Type

CUMMINS
17
Rated Horse Power
Kw
112
18
Electrical System
Volt
24
Compressor Required
19
Compressor Type

Rotary Screw/Movable
20
Pressure Required
Mpa
1.05-4.5
21
Air Consumption
M3/min
16-60
Truck
22
Manufacturer

SINOTRUCK HOWO
23
Model

ZZ1257M5847C
24
Engine

WD615.93C
25
Rated Horse Power
Hp
245
26
Discharge Standard

EU-3
27
Drive Type

6*4
28
Max.Speed
Km/h
102.9
29
Steering Wheel

Left/Right(Optioanl)
Mud Pump
30
Power Type

Hydraulic
31
Model

BW850/2
32
Stroke
mm
110
33
Displacement
L/Min
850
34
Discharge Pressure
Mpa
2
Dimension
35
Net Weight
T
20
36
Shipping Length
mm
10500
37
Shipping Width
mm
2480
38
Shipping Height
mm
3050
39
Working Size(L*W*H)
mm
11000*2480*7147
Successful Project

Borehole CSD400 Portable Hydraulic Water Well Drilling Rig Truck Mounted 2
       CSD300 to Commeroon                                       CSD600A to Chile                                  CSD600 to Uruguay

Product Configuration

Borehole CSD400 Portable Hydraulic Water Well Drilling Rig Truck Mounted 3
               Mud Pump                                           Operation Panel                                        Radiator

Product Features

1. The drilling rig can use air DTH Hammer drilling and mud drilling.
2. Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
3. The truck chassis adopts the 6X4 special crane chassis of brand Sinotruck Howo and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
4. It's a hydraulicrotary drilling rig with directional circulation. It is equipped with BW850/2 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
5. The power of drilling rig comes from a diesel engine, 113KW CUMMINS engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
6. The rotary head,have two gear,rotation speed is 0-60 and120rpm stepless adjustment and the rotary torque is 9600Nm.
7. The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
8. It can set up a generator which is convenient to welding or illuminate for work at night.
9. Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
10. The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.
11. The tools winch winch is used for auxiliary lifting and casing,optional main winch force of 4T, rope length of 100m and 8m lifting height.
12. The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping. 13. Competitive in price, low cost of maintain.
Product Loading
Borehole CSD400 Portable Hydraulic Water Well Drilling Rig Truck Mounted 4
FAQ
Q: Are you original manufacturer?
A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.
Q: Which payment terms are available to us?
A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment.On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.
Q: How long will the delivery time take?
A: Normally mud pump products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.
Q: How about after sales service?
A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."
Q: Spare Parts When You Need Them
A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
